Round Hole Type Graphite Falling Film Absorber

Round Hole Type Graphite Falling Film Absorber

The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.

  • Sự chi trả:

    TT L/C PayPal Westunion Moneygram
  • Nguồn gốc sản phẩm:

    China, Anhui province
  • Cổng vận chuyển:

    Shanghai
  • Thời gian dẫn đầu:

    1 Month
  • MOQ:

    1
  • Bưu kiện:

    Wooden case
  • Màu sắc:

    Customzied
  • Vật liệu:

    Graphite
  • Làm việc tạm thời:

    ≤170℃
  • Áp lực làm việc:

    Vertical≤0.1Mpa,Horizontal≤0.4Mpa



Product review

Its structure and principle bear resemblance to those of tubular graphite falling film absorbers. Besides possessing the same characteristics as the tube-type graphite falling film absorber, it also offers the advantages of high structural strength, excellent heat shock resistance, high heat transfer efficiency, and convenient maintenance. It is a gas absorption equipment with outstanding performance.





Product advantages

The Round Block Hole Graphite Falling Film Absorber features high heat transfer efficiency, outstanding chemical corrosion resistance, good mechanical strength, uniform fluid distribution, large processing capacity, stable operation, easy maintenance, and a long service life.





Structural diagram



Parts details
1 Air inlet
2 Graphite gas-liquid mixing chamber
3 Liquid inlet
4 Graphite pressure stabilizing ring
5 Graphite distribution head
6 Vent
7 Cooling water outlet
8 Equipment support
9 Graphite heat exchange block
10 Cooling water inlet
11 Drain port
12 Gas liquid separation chamber
13 Tail gas outlet
14 Acid outlet



Drawing Specification Table for Tube
Model Specifications
a.e Tube b.c Tube
DN
f.g Tube
DN
d Tube h Tube
D1 D2 D3 D4 D5 D6
YKX30 5 50 145 50 20 100 210 65 160
YKX40 10 65 160 50 20 150 295 75 180
YKX50 12 75 180 65 20 200 350 100 210
15
YKX60 20 100 210 80 20 250 400 125 240
25

Others
Để lại một tin nhắn
Nếu bạn quan tâm đến các sản phẩm của chúng tôi và muốn biết thêm chi tiết, vui lòng để lại tin nhắn ở đây, chúng tôi sẽ trả lời bạn ngay khi có thể.
nộp

Sản phẩm liên quan

GX type falling film shell and tube graphite absorber
Industrial Shell & Tube Graphite Falling Film Absorber

Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.

Chi tiết
GX Graphite Falling Film Absorber
Shell And Tube Graphite Falling Film Absorber

The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.

Chi tiết
KXG Graphite Falling Film Absorber
New Round Block Hole Graphite Falling Film Absorber

The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.

Chi tiết
Large Electric Axial Flow Pump
máy bơm lưu lượng trục lót fluorine

Bơm lưu lượng trục fluorine THZWF là một máy bơm chất lượng cao được thiết kế đặc biệt cho các ứng dụng liên quan đến fluorine. Tận dụng công nghệ tiên tiến, nó tự hào có hiệu quả cao và hiệu suất ổn định.

Chi tiết

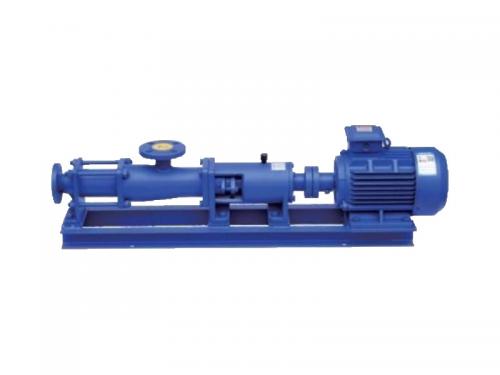

G Type Sealed Single Screw Pump
